Thank you for your comment, I am very envious of people that can tig weld well, but as you say, just practise good techniques and in time, the welds will get better.

As far as the tungsten stick out, in that particular picture, I had to get in between the acute angled point of the flange and pipe, so I stuck the tungsten furthur out, so I could initiate the arc i.e if I didn't stick the tungsten out furthur, then my cup would hit the pipe. I tried to compensate for this, by increasing the gas flow to shield the tungsten and the weld puddle. Typically I have done what you said, 1 to 2 times the cup size.

I have been driving the car daily with the 3065 , however , We found a problem with the ID1000 injectors even after getting them cleaned. One of them was causing a misfire, after testing and testing, we swapped out to some old school 650 cc injectors and the car idles perfectly.However 650cc injectors are not even CLOSE to being enough for this 3065 at even 8 psi of boost. So hopefully this weekend, I am going to install my OLD school RC engineering 1200cc injectors into the colt, which should give me enough head room, to at least run 22-25 psi on gas..

The messed up part is that these injectors, were just brought back from cleaning. Sooo I have to send them back to Injector dynamics to get fixed. It never ends

_________________
Warren
91 Eagle Summit AWD 10.14@138.31 (6.56 @110.30 1/8th, 1.48 60') 1.40 best 60 ft - best mph 154
03 EVO 10.86 @ 134.73 best mph 139.00
90 GST 10.36 @ 142.49 best mph 147.10

Kinda funny that OEM Denso injectors work for decades. I've had a '90 TSi that had 334,000 miles with OEM injectors and my mother's '90 TSi has 270,000 miles with OEM injectors.

These bosch EV injectors "types" are definitely a little more sensative to debris, as the tolerances of moving parts in the injector themselves are not as sloppy as the old style.

I don't even want to tell you how many times I have had to clean my 2150cc injectors......

_________________
Warren
91 Eagle Summit AWD 10.14@138.31 (6.56 @110.30 1/8th, 1.48 60') 1.40 best 60 ft - best mph 154
03 EVO 10.86 @ 134.73 best mph 139.00
90 GST 10.36 @ 142.49 best mph 147.10

Bosch recommendation is 5 micron for nominal capture of AT LEAST 82 % From the last paper that I have seen. The closest thing on the market is from Fuel lab at 6 micron of filtration--- trying to find one that is ethanol safe is a little tougher to find yet , without paying an arm and a leg.

_________________
Warren
91 Eagle Summit AWD 10.14@138.31 (6.56 @110.30 1/8th, 1.48 60') 1.40 best 60 ft - best mph 154
03 EVO 10.86 @ 134.73 best mph 139.00
90 GST 10.36 @ 142.49 best mph 147.10

Just run something like 16 Denso 450s. 4 banks of injectors on the intake manifold. LOL

Not too many updates...

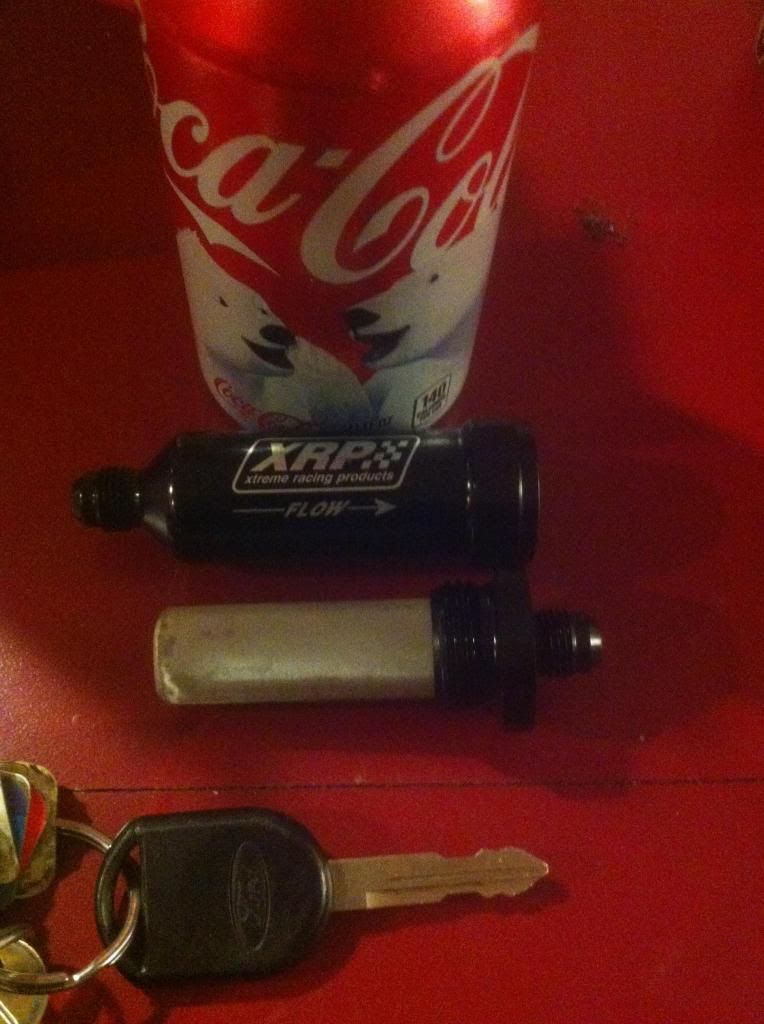

I have been revamping the fuel system slightly, first up was a small foot print 10 micron fuel filter set up from XRP systems.

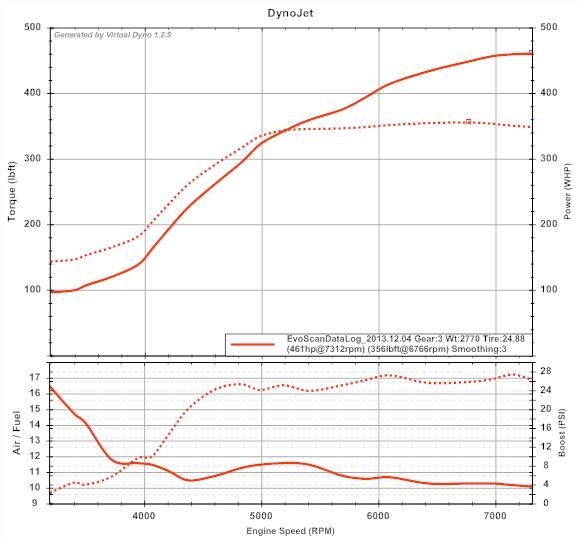

Followed by installation of my old 1200cc RC engineering injectors. I have been dialing in these injectors slowly and for the most part just working on the driveability portion of the tuning. Here is a quick snap shot of the first ROUGH shot of a WOT run through VD :

Notes for the file
1)Target afr up top in the low 10s so that needs to be leaned out
2) Actual boost is 23 psi to 24 psi, i.e the incorrect logging equation for boost
3) Latency adjustment in operating range is too high ------0.5ms from 12v to 14v
4) Peak load is showing a significant drop in battery voltage, so might need to step up to a larger alternator
5)Need to play with the boost controller a little to stabilize the boost curve
6) peak timing is 7 degrees
7) 93 octane fuel



the graph is promising, but I wanted to share the characteristics of the turbo and the motor to everyone.

enjoy

_________________
Warren
91 Eagle Summit AWD 10.14@138.31 (6.56 @110.30 1/8th, 1.48 60') 1.40 best 60 ft - best mph 154
03 EVO 10.86 @ 134.73 best mph 139.00
90 GST 10.36 @ 142.49 best mph 147.10

Been Driving old girl for the last month or so everyday, it is quite the fun little car in the snow, with its short wheel base.

Here is a quick shot, taking it for a stroll on the back roads ( oil pressure sending unit is crap-hence high number)


A little project that I completed for my friends wife-- it turned out good



Which brings me to my next project, which I am excited to begin: Long tube, expansion chamber style , two piece exhaust manifold.
This should be a pretty involved project for me, as it combines, engineering principles utilizing physics and thermodynamics, as well as fabrication and metal working constraints. This also gives me the oppurtunity to learn some of the intricate parts of tig welding.

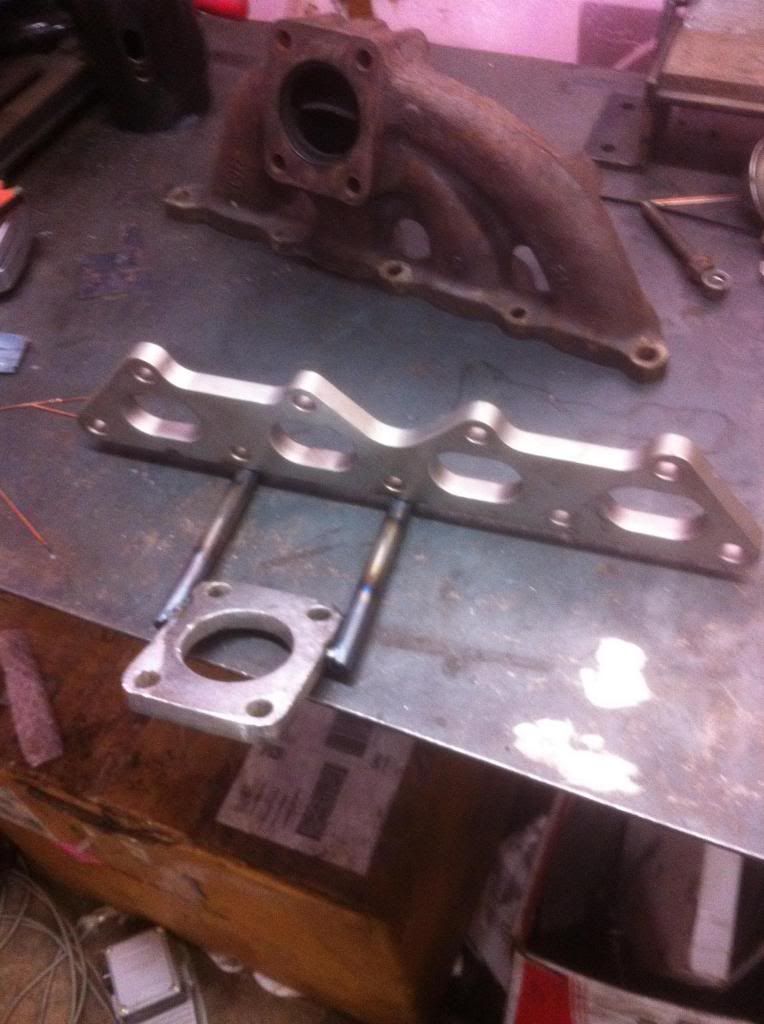

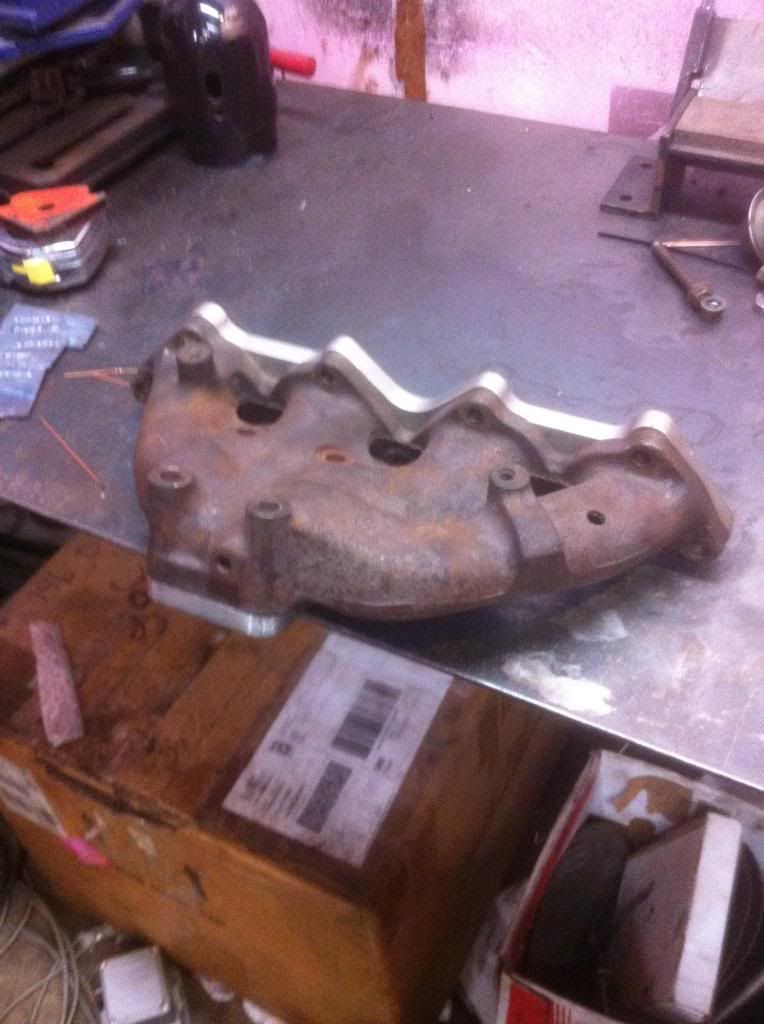

I am building a small fixture so that I can work on it , without a car present


and without the stock manifold in place: A pretty simple start.


Next I will have to get some more steel, so that I can simulate the engine bay constraint points. Thank you for looking and Merry Christmas

_________________
Warren
91 Eagle Summit AWD 10.14@138.31 (6.56 @110.30 1/8th, 1.48 60') 1.40 best 60 ft - best mph 154
03 EVO 10.86 @ 134.73 best mph 139.00
90 GST 10.36 @ 142.49 best mph 147.10

Happy New Year to all, Hopefully 2014 will bring all the goals you may desire.

Santa was really good to me this christmas, where I seemed to get everything that I asked for on my list

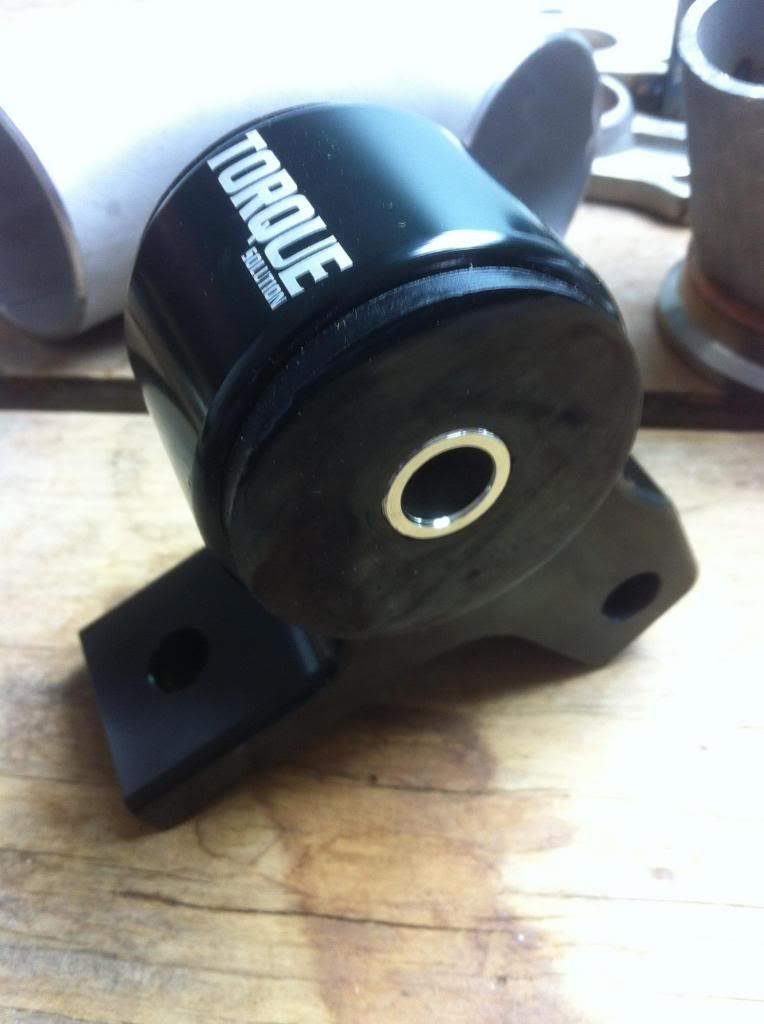

First up the torque solution front engine mount for the colt- this thing made a world of difference in regards to engine pitching


Then all the accessories for my first tubular manifold for the colt... merge collector, flanges, weld els, tubing etc etc

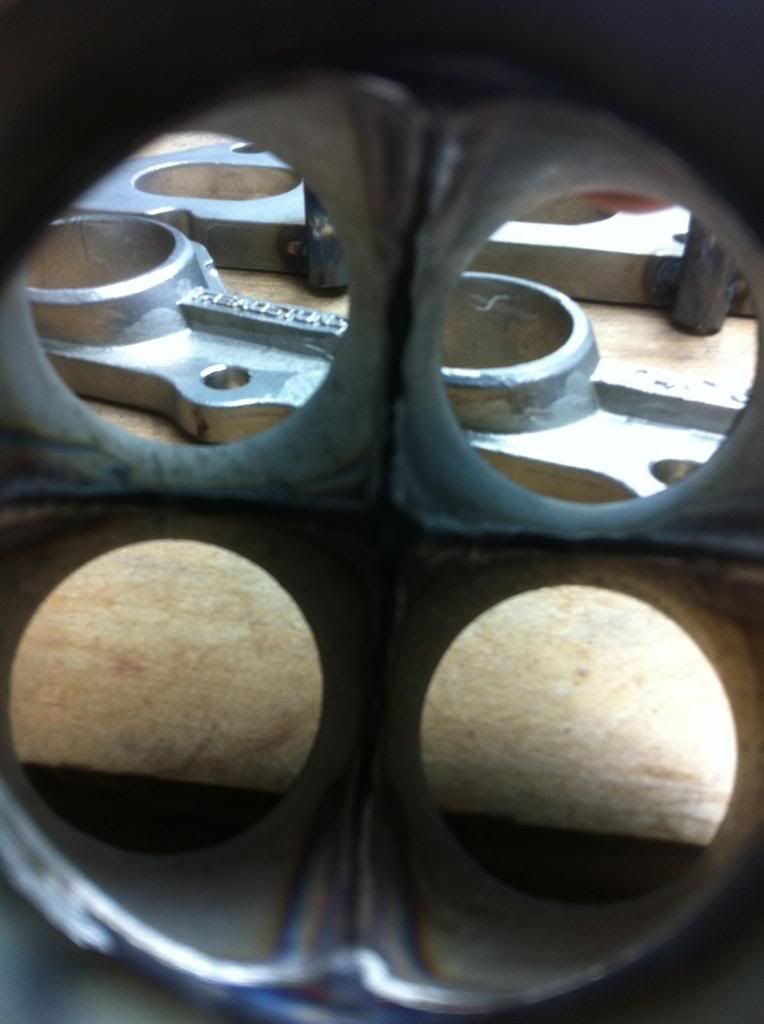

a shot of the collector
