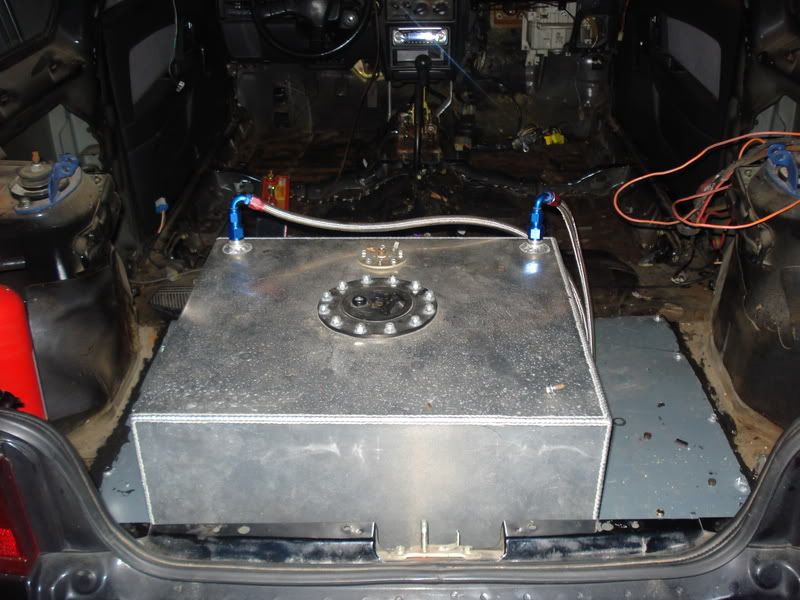

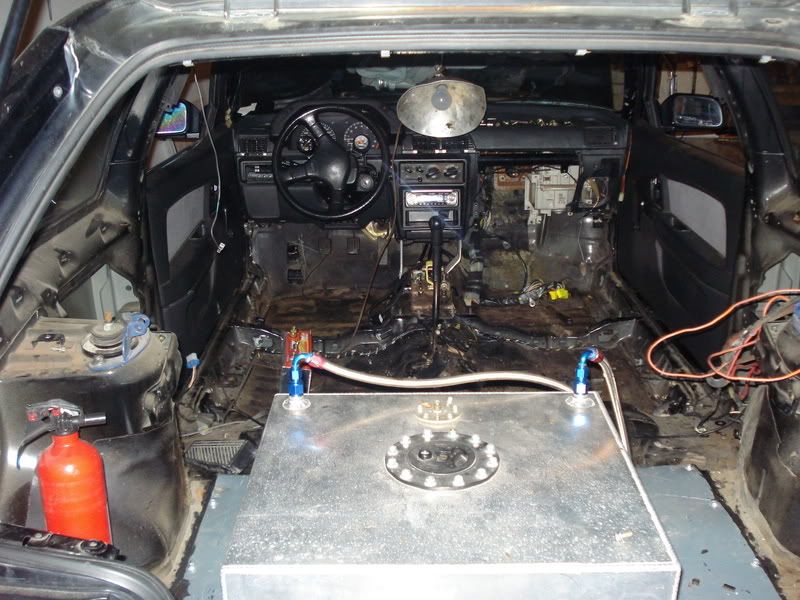

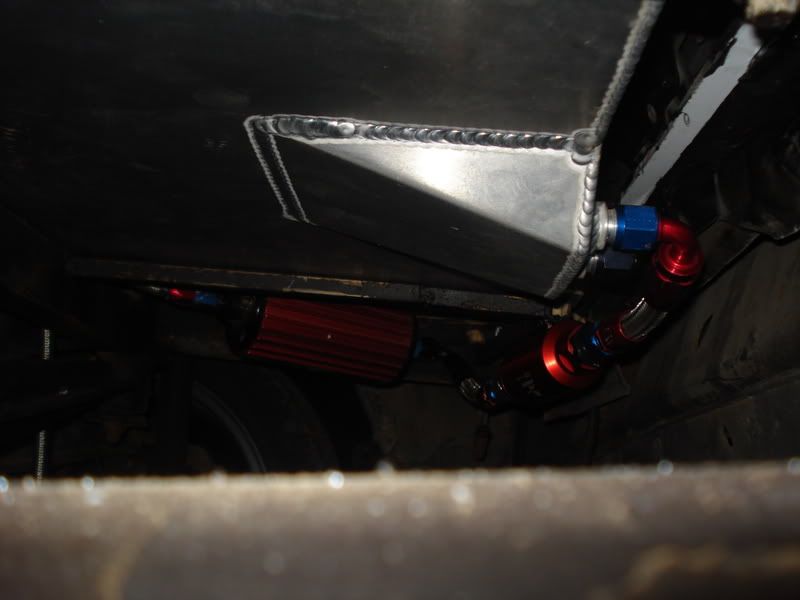

Some of you may know i decided to go with a fuel cell, and some other goodies. Such as bigger brakes, and JMF intake mani. I also did a Simi wire tuck. The harness is in the car in these pictures ;)


heres some pictures of my progress as of now.

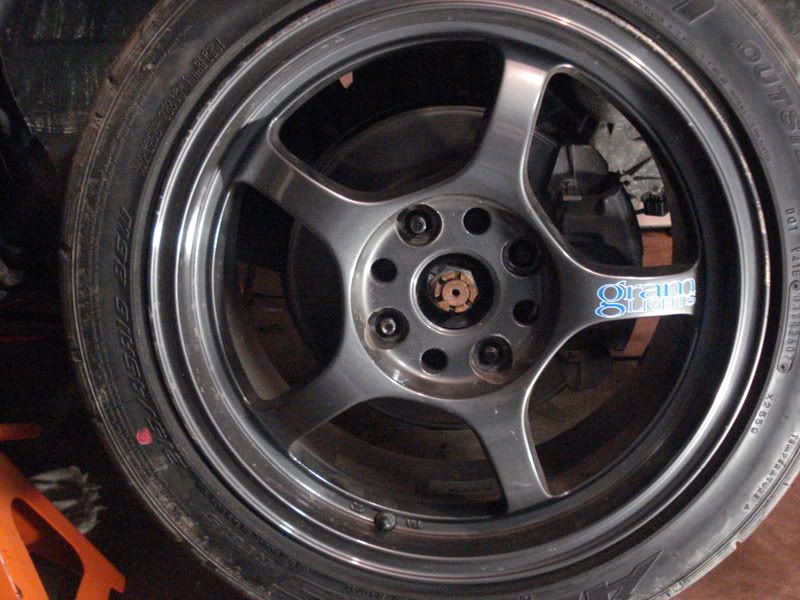

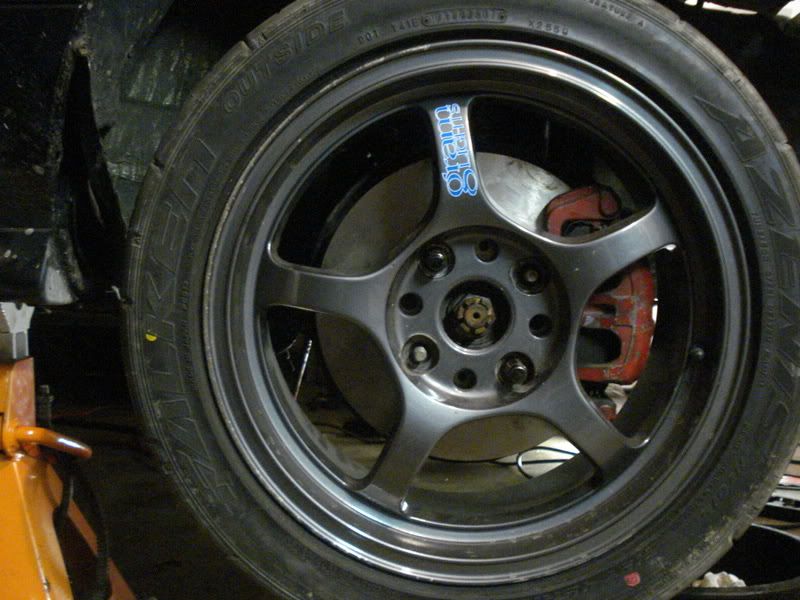

My brakes..

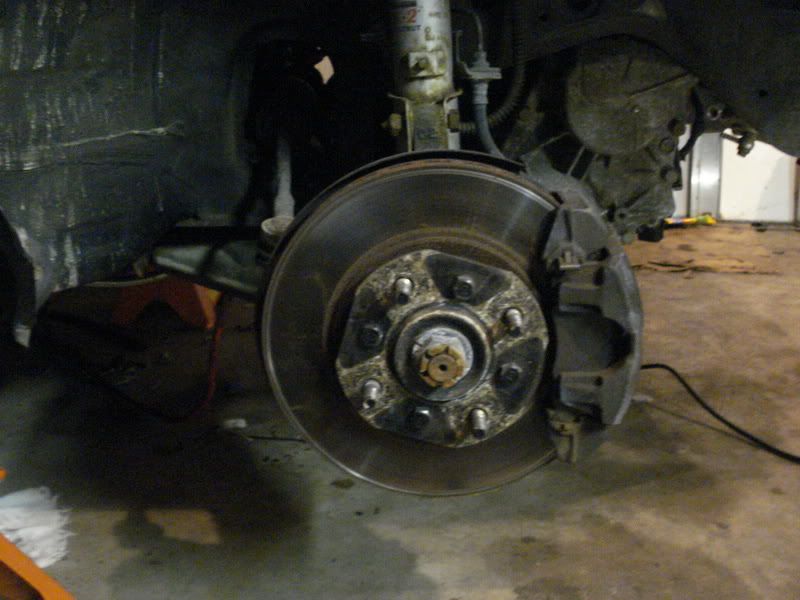

before

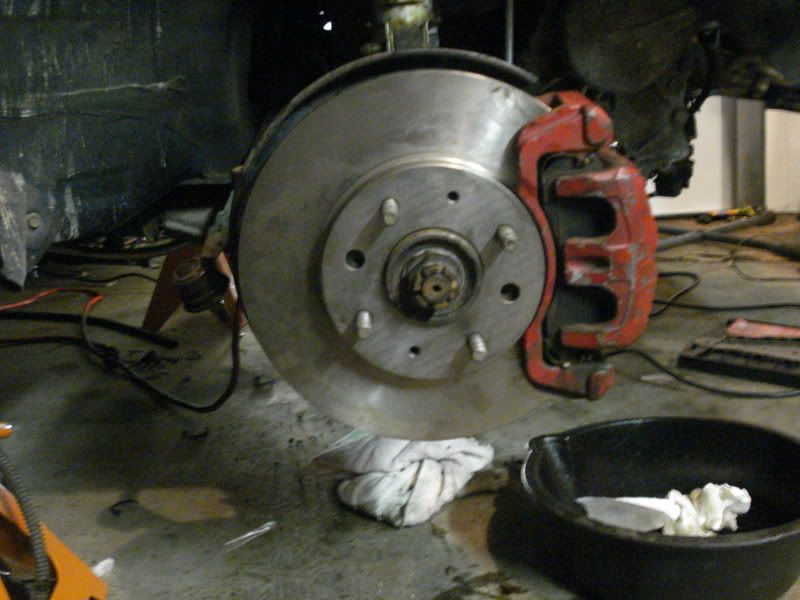

After

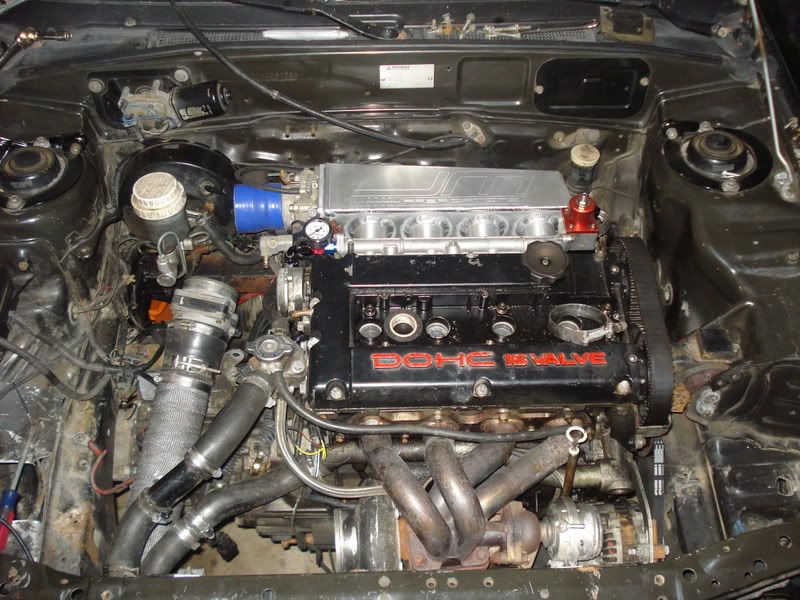

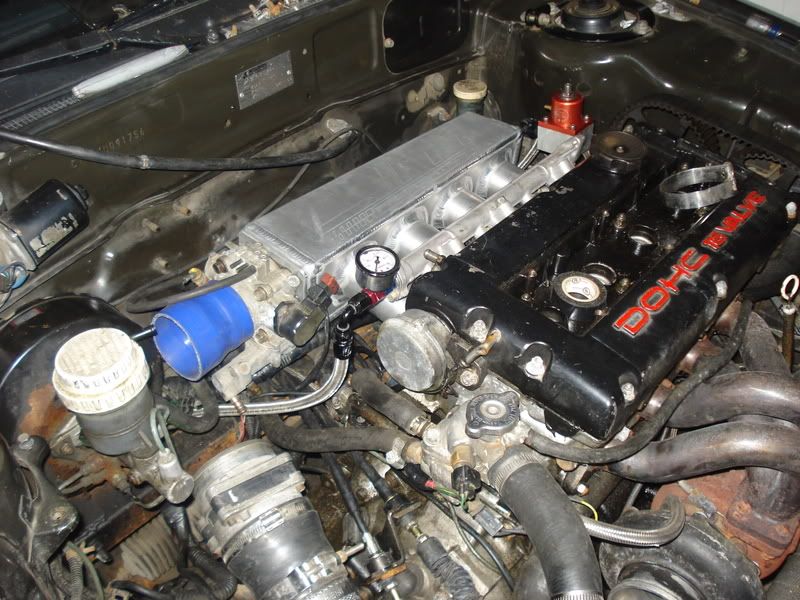

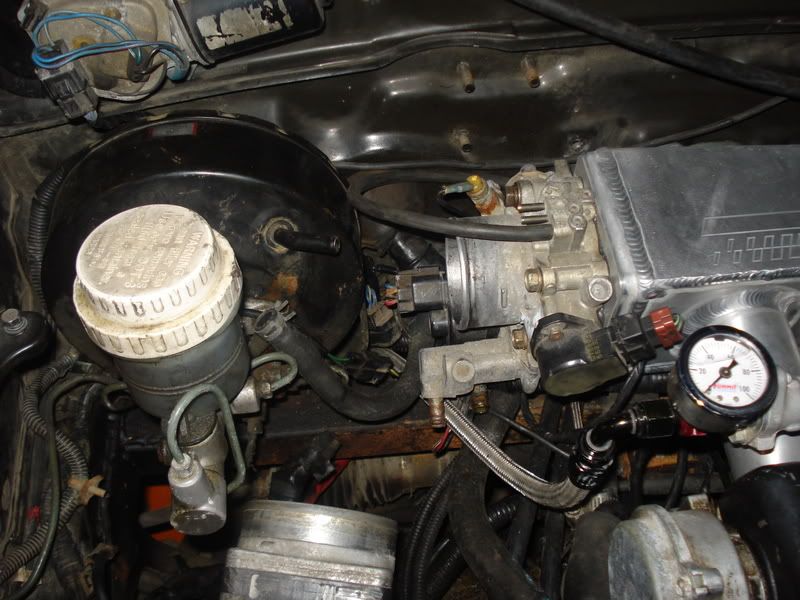

the requested engine bay.. :( its ugly, and dirty. And a simi wire tuck





Let me hear the feed back. I enjoy it ;)
