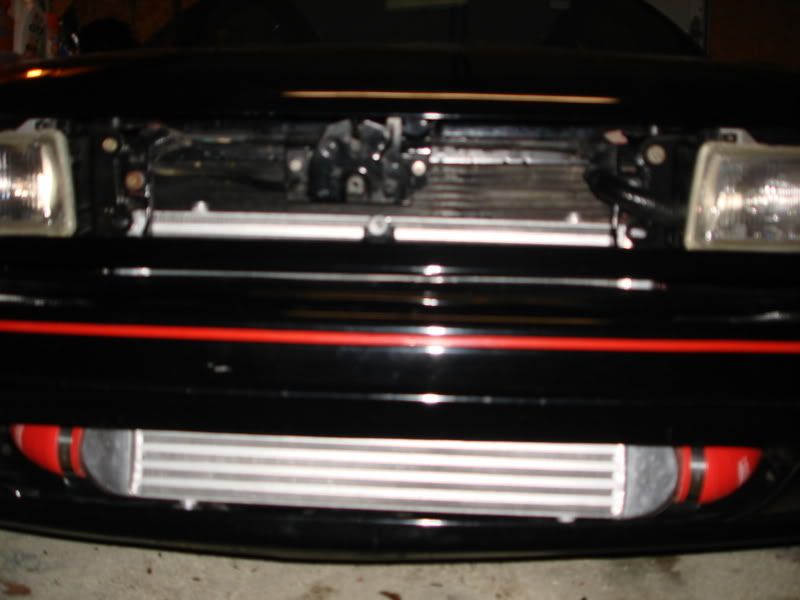

So I have the left over piping from my old 4g63 colt. First, its flanged for a 1g bov (NOT INCLUDED) and you need a 2g elbow (or 1g elbow whatever you want). The piping is also configured for a downward facing turbo. As far as intercooler goes, heres a picture of one I had on it. You can see that it will fit any intercooler that has the end tanks facing straight out. It will come with the couplers that you see, ill even throw in a few clamps for you as well. It is also set up for a GM MAFT, but I am not including that or the couplers for the gm maft, so if you dont have it you can just run a coupler and you are good to go.
I will try and post as many pictures as I can with the piping on the car, but it was taken off and powder coated with a different color. The cold side pipes are,then the hot side pipe is another color (cant really see it).

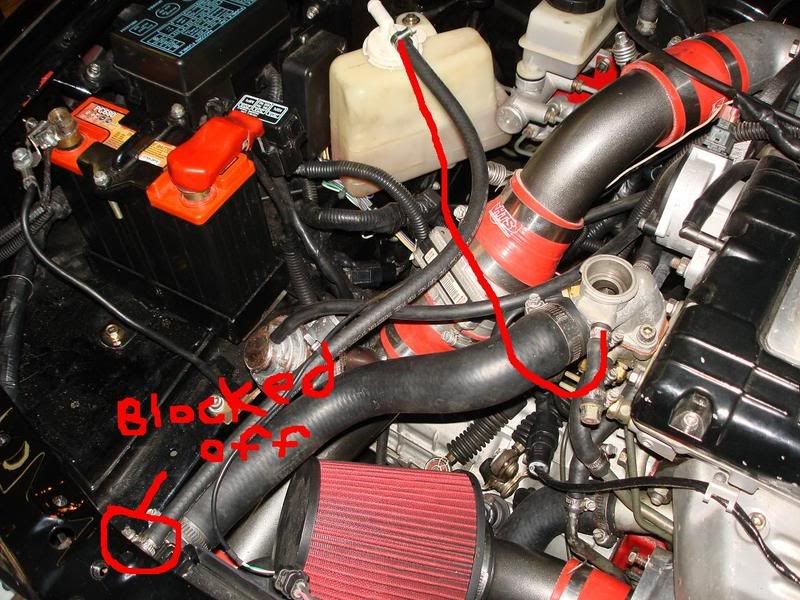

*this pic is the old color, just showing how it was routed*
Also if you are interested in the intake that you see in the pictures, let me know and I will sell it separate.

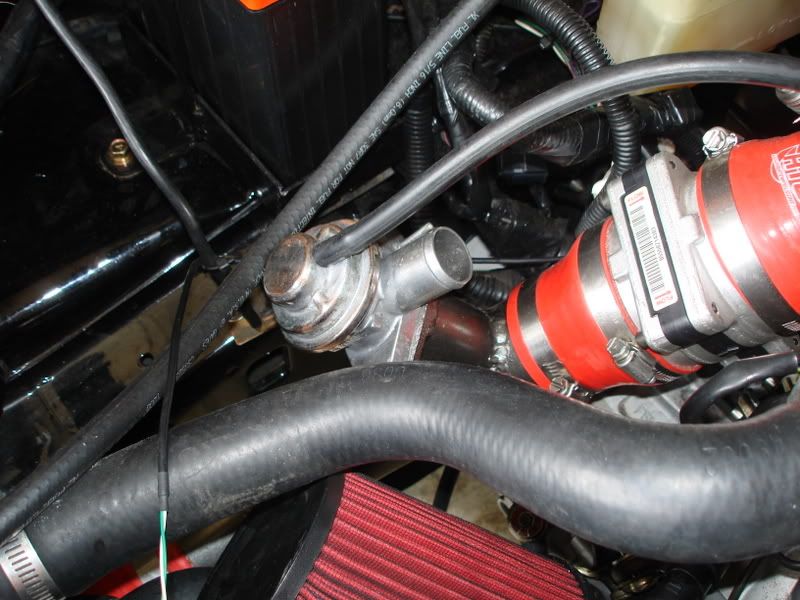

That last pic, the hotside intercooler pipe is no longer like that, it runs down through the bottom like I said.
If I find more pics, ill post them up. Any questions just ask. I have an GReddy intercooler as well that I will post up soon enough.

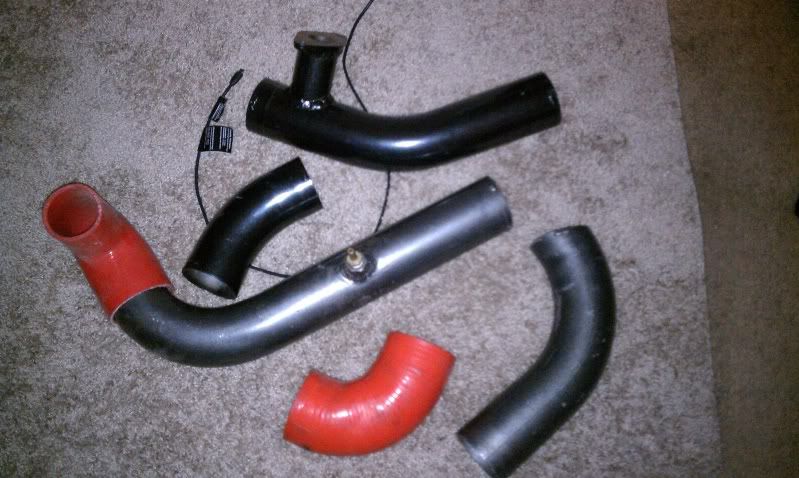

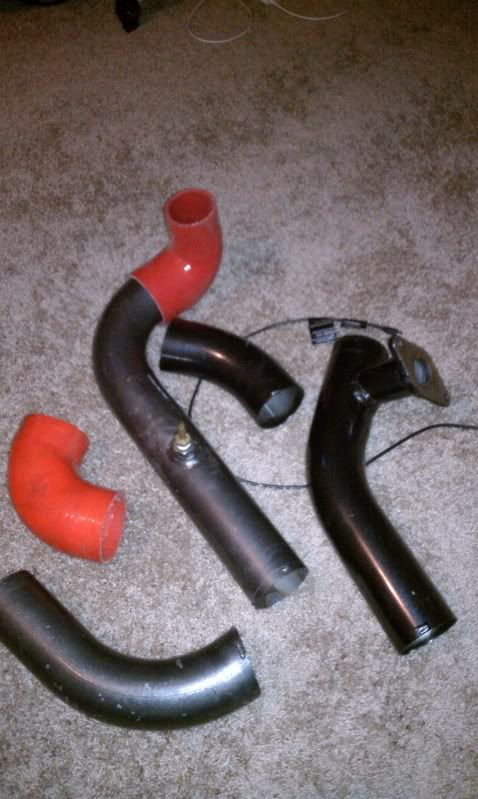

Here is what you are getting so far (minus a few couplers and some clamps ill throw in)
$150 shipped
